CADDXCURVE MICRO 16

New Option | 1S Brushless HD Whoop Racing Drone

Buy Now

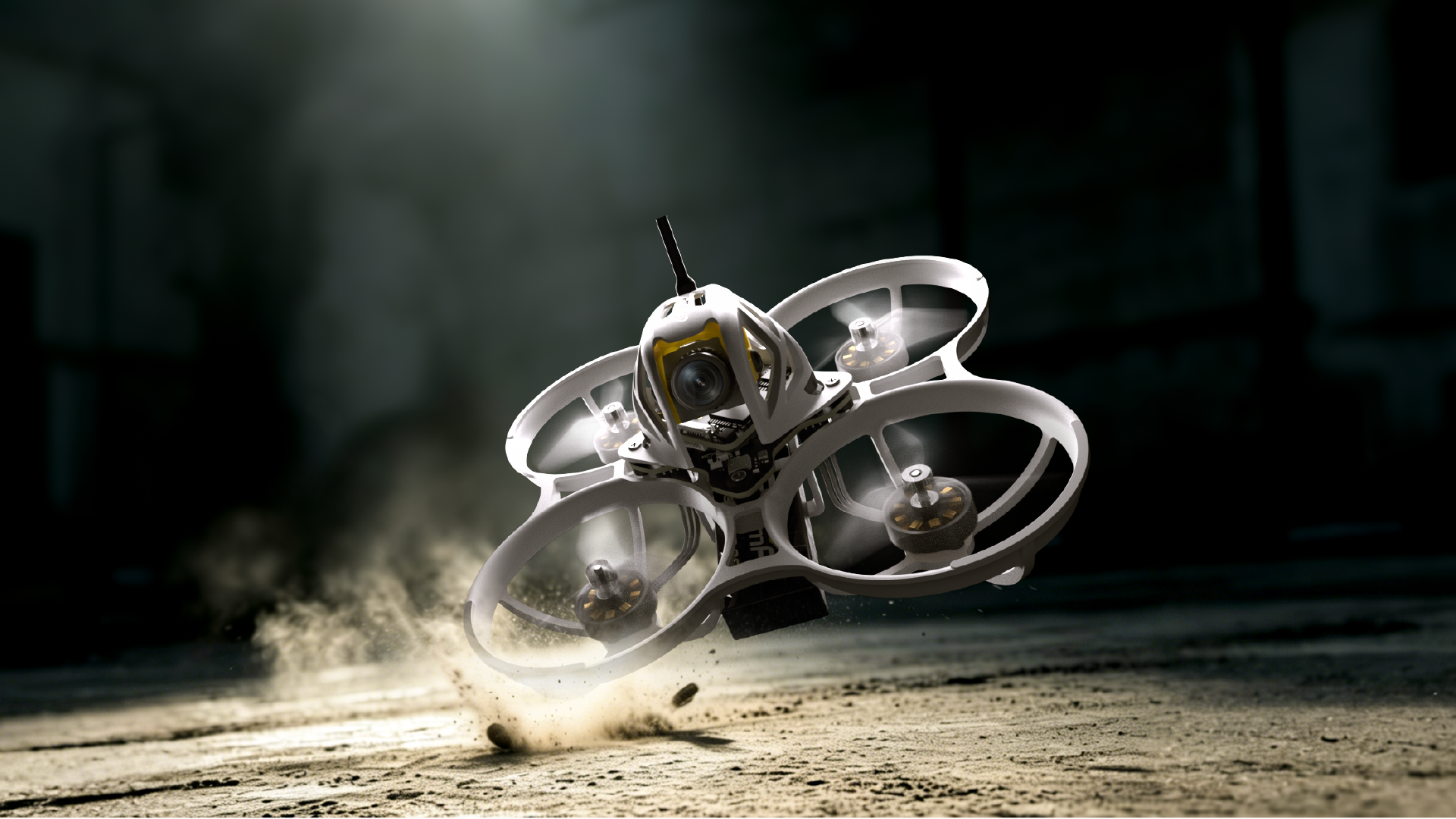

CURVE MICRO 16

TOUGH ULTRALIGHT 48g

One-piece high-strength injection molding. Built to take a beating, smooth to the touch. Indoors or out, it just rips.

TOUGH ULTRALIGHT 48g

Multi-Rate HD Transmission

Experience smooth, responsive live video feeds with dynamic multi-rate HD transmission.
Stream in crisp 1080p or 720p at up to 120fps (60/100/120fps) for total precision in every turn.

Multi-Rate HD Transmission

SYNCED AUDIO 147° WIDE FOV

Immersive FPV, now with high-fidelity audio.
A premium 1/2.8-inch image sensor and anexpansive 147° ultra-wide FOV capture vibrant,crystal-clear flight footage through tight spaces and sweeping freestyle lines.

SYNCED AUDIO 147° WIDE FOV

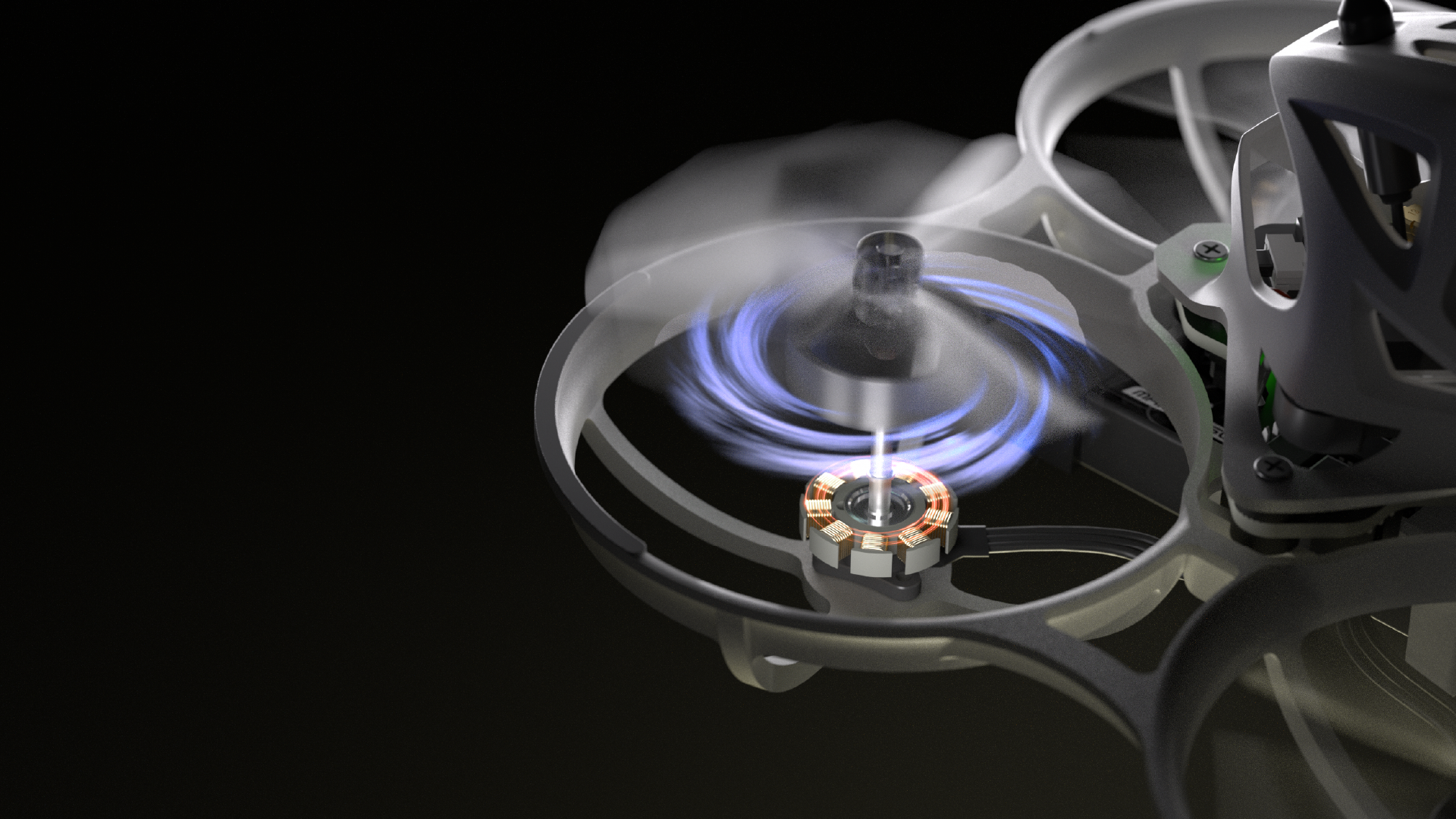

EXPLOSIVE POWER

High-RPM 1102 motors.
Instant throttle response and massive punch-out power for indoor FPV freestyle.

EXPLOSIVE POWER

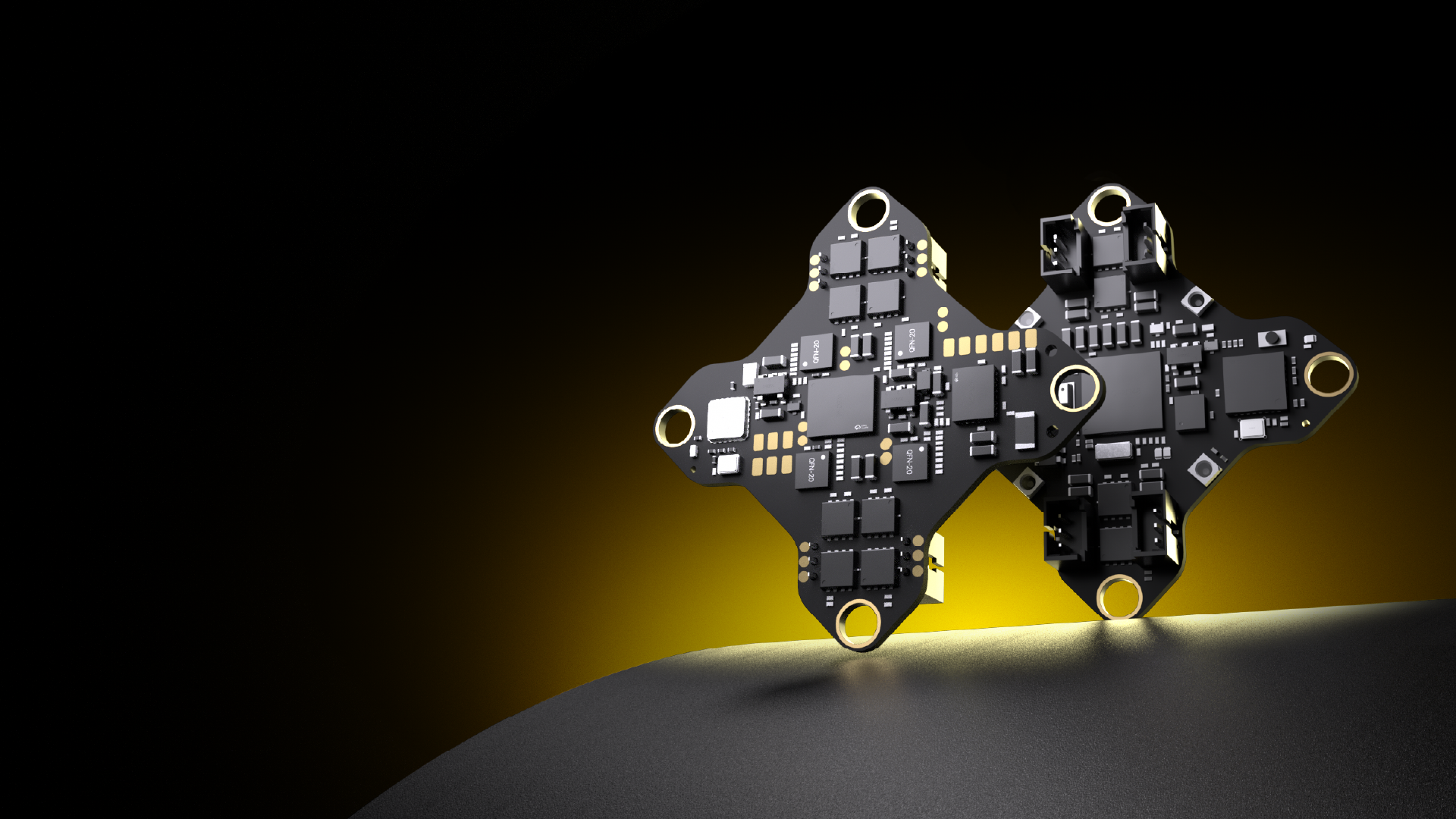

New WHOOP FC

Deeply integrates custom FC, 6-axis gyro MCU, ESC, ELRS 2.4GHz receiver, and programmable LEDs into one ultra-compact board. Faster response, locked-in stability

New WHOOP FC

Ascent Ecosystem

Native compatibility with Ascent Series Goggles for total HD immersion.
Plug and play with Ascent VRX and VRX Pro receivers.

Ascent Ecosystem

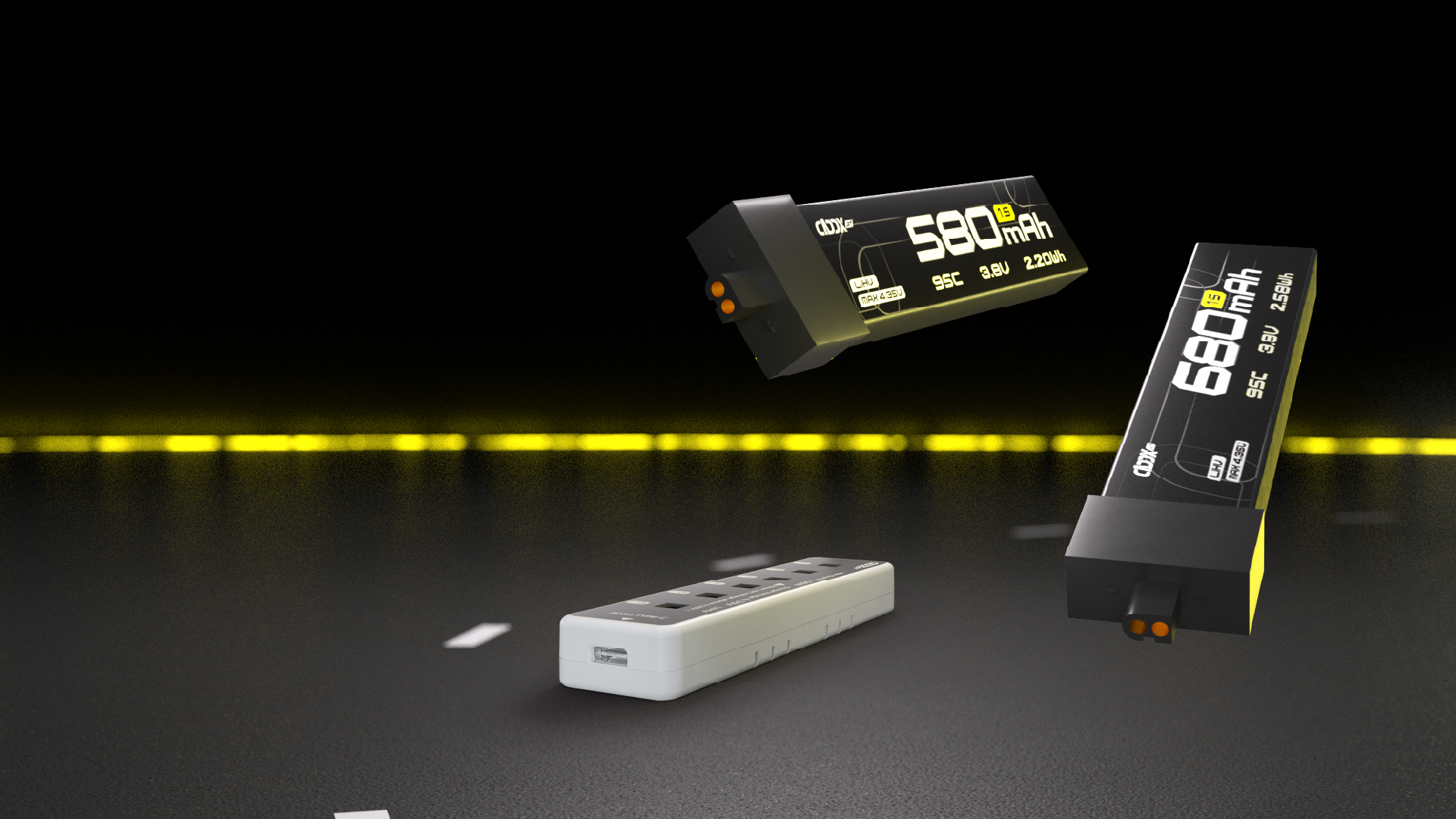

LONG FLIGHT A30 PLUG

Equipped with a standard A30 connector, supporting mainstream 1S 580mAh /680mAh batteries for a continuous 5 to 7 minutes of flight.
Refuel fast with the included Type-C 6-channel fast charger, compatible with power banks, DC, or car outlets.

LONG FLIGHT A30 PLUG

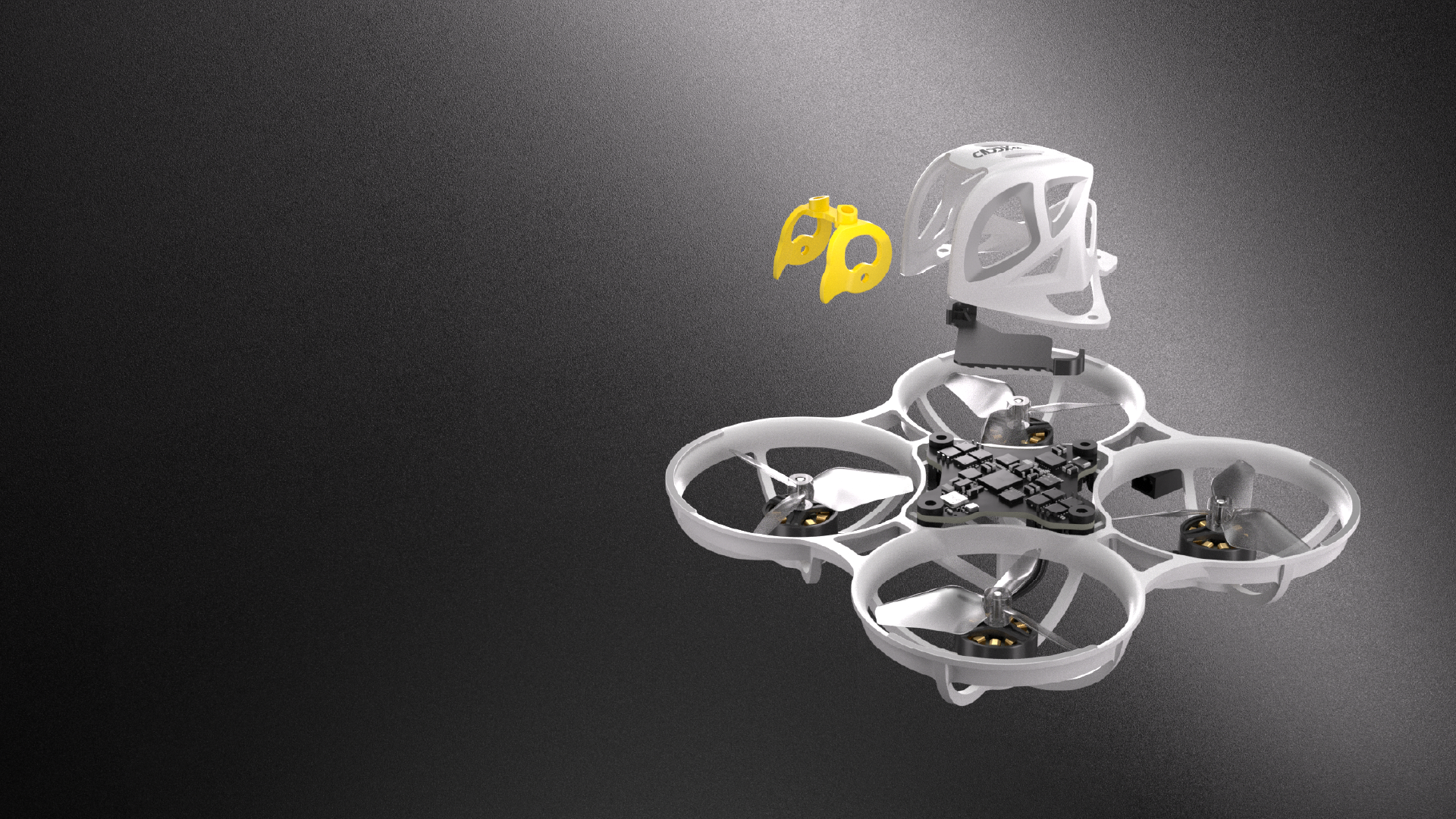

INFINITE MODULARITY

Native support for Walksnail Ascent Lite /Lite+ VTX, Avatar 1S, and third-party systems.
Quick updates via standard Type-C and CADDX PC Tool.

INFINITE MODULARITY

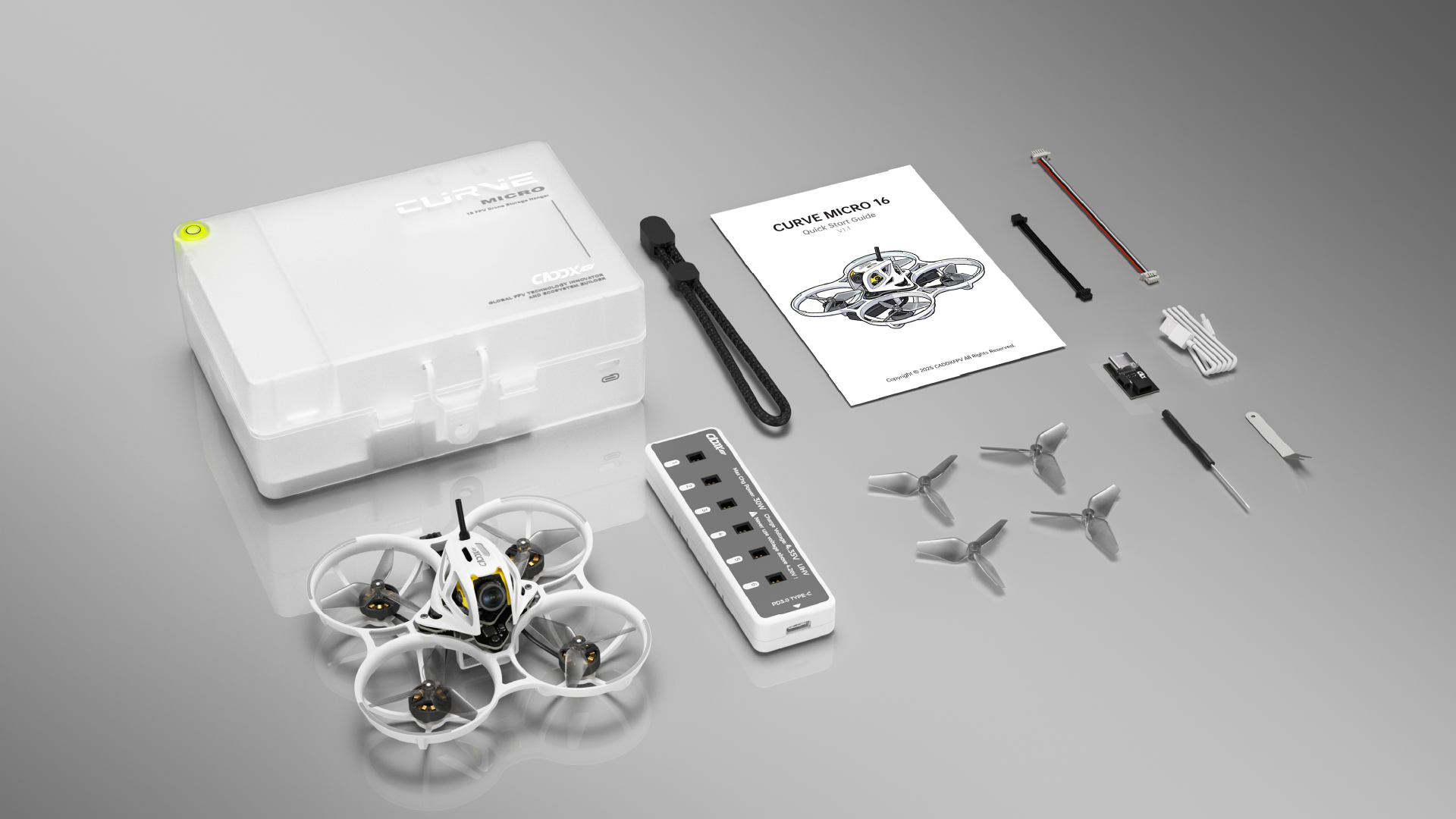

PACKAGE

PACKAGE

Specification

Specifications
ModelCurve Micro 16
VTXAscent Lite+
FCAXON 1S AIO V2.0
ESC1S 12A
ReceiverELRS V3.5.0
Motor1102
PropellerHQ 40mm 1.6X1X3
Wheelbase75mm
PWR PortA30
Flight Time6min
Weight32g (±2g)


FCAXON 1S AIO V2.0
ProcessorSTM32G473
GyroscopeICM42688 /BMI270
Blackbox16M
BEC5V3A
FC Voltage1S
FC FirmwareCADDXG473-2026.6
ESC Current12A (Continuous);18A (Peak)
ESC FirmwareA-X-5
Tune PortSH1.0-4P
Motor PortJST1.25-3P


VTXAscent Lite+
Comm Freq5.730-5.815 GHz
Tx Power500mW (Max);
(EIRP)FCC/SRRC:<27dBm; CE:<14dBm
Op BW5M/ 10M/ 20M/ Auto
Sensor1/2.8 Inch Sensor
Resolution1080P@60/100/120fps,
720P@60/100/120fps
Ratio16:09
FOV147°
Power Input3-12.6V


Charger6-Channel Charger
FC ProtocolUSB PD/BC1.2
In Voltage5V-12V
In PortType-C USB
Bat TypeLiHV 4.35V
Channel6
Max Input Power30w
Max.Charging Curr1A
Dimension101.5*30*14.5mm
