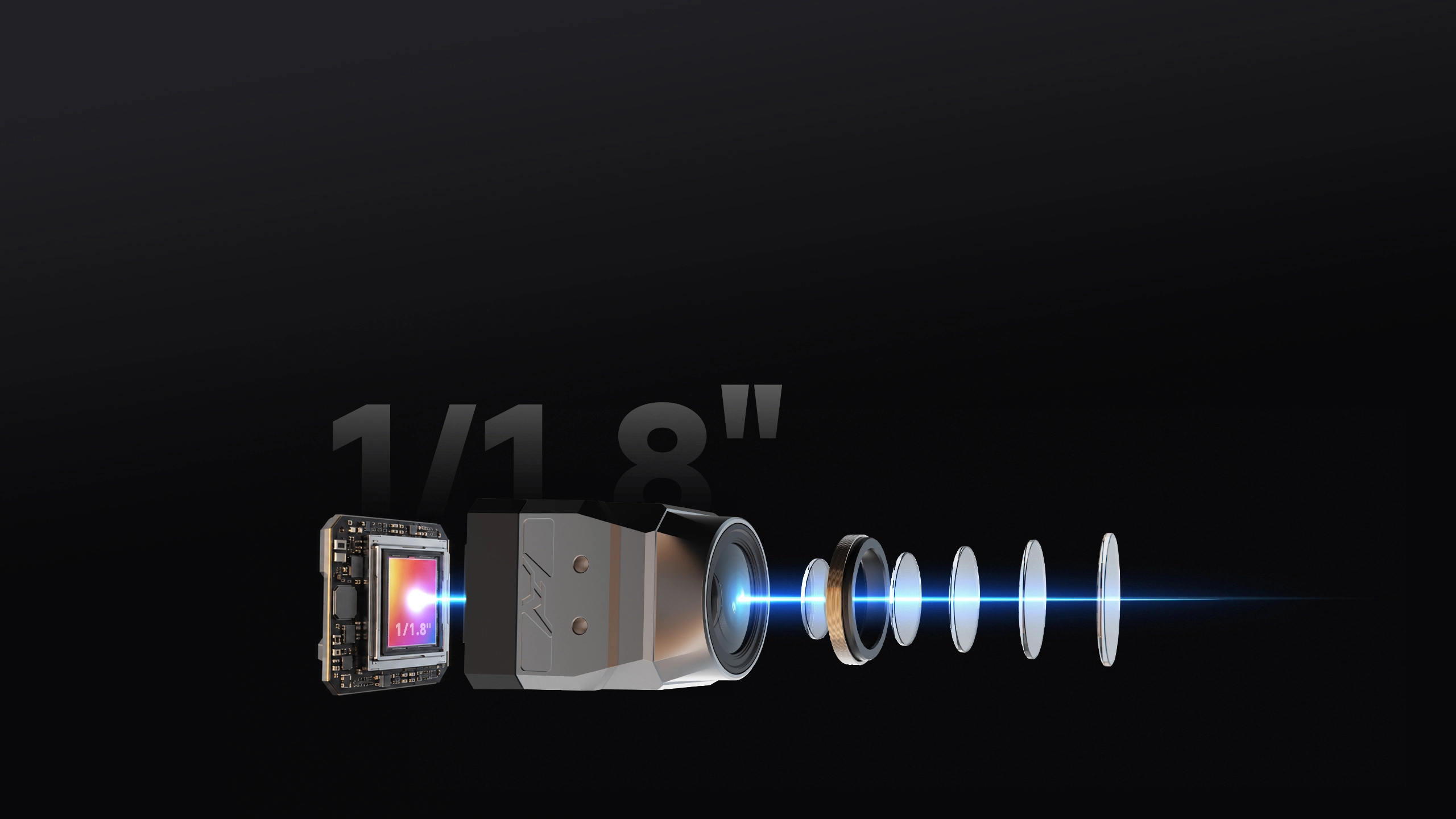

Equipped with 1/1.8" large sensor and 1200TVL resolution. Consistent performance across light shifts, capturing sharp details for immersive FPV vision.
Built-in Super WDR suppresses backlight and sudden light shifts. Intelligent contrast adjustment adapts to complex outdoor flight environments, preserving highlight and shadow details for well-exposed, crisp footage.
Minimum illumination down to 0.00001 Lux delivers excellent starlight-level performance, capturing faint ambient light and suppressing image noise for sharp visibility in low-light scenarios.
A standard 125° wide-angle lens delivers immersive vision and layered frames, capturing full flight scenes and dynamic moments during racing & freestyle flight.
Seamlessly switch between NTSC/PAL standards and 16:9/4:3 aspect ratios, with adjustable output parameters to fit the connection needs of all types of receiving equipment.

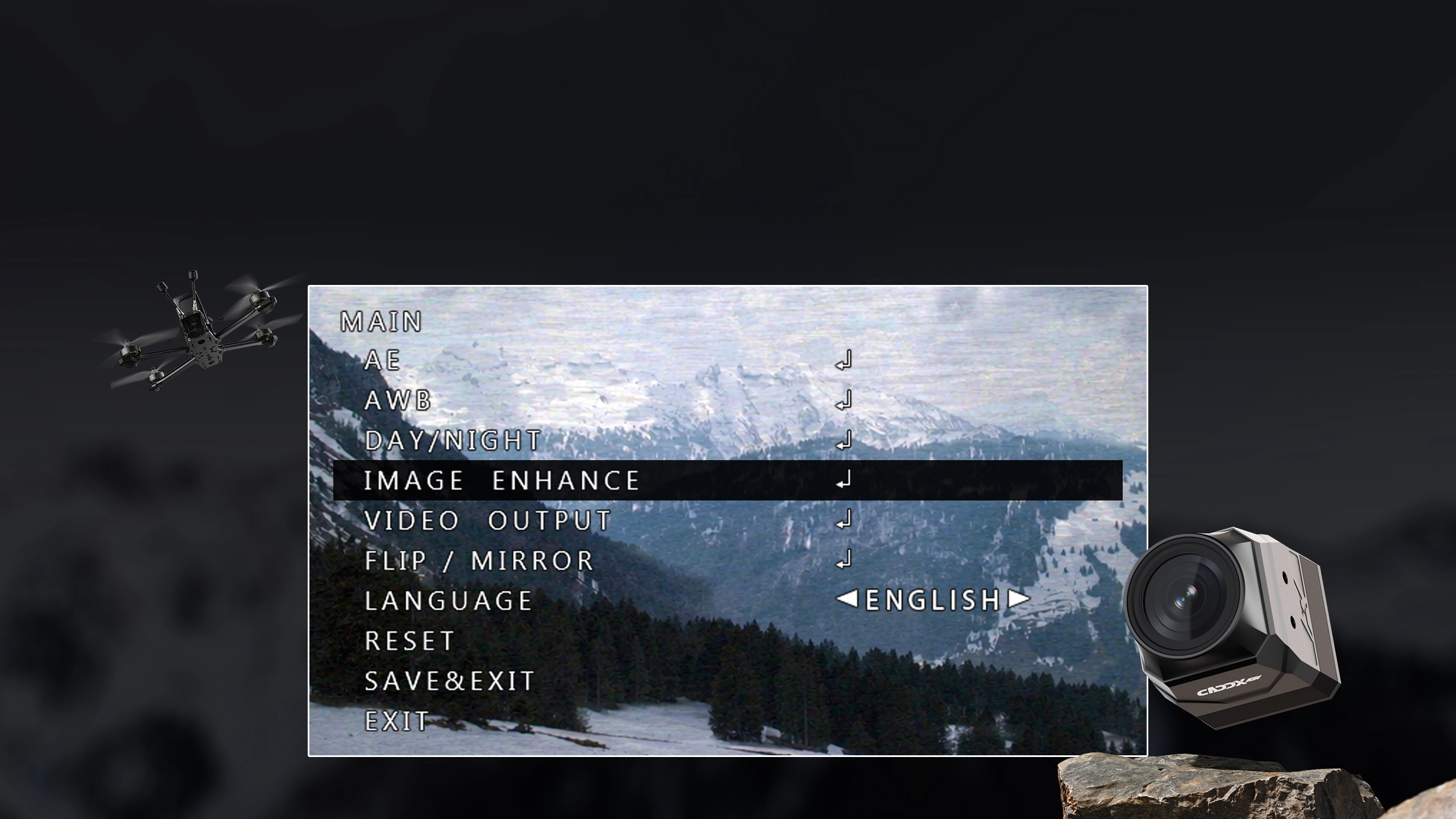

Equipped with a full on-board OSD menu for quick parameter tuning via remote control without external devices, enabling custom exposure, white balance, image enhancement and video format settings for preferred visuals.
Features Auto, Color, B&W and EXT scene modes with one-touch switching, supporting flexible selection for racing and aerial photography to achieve optimal visuals.

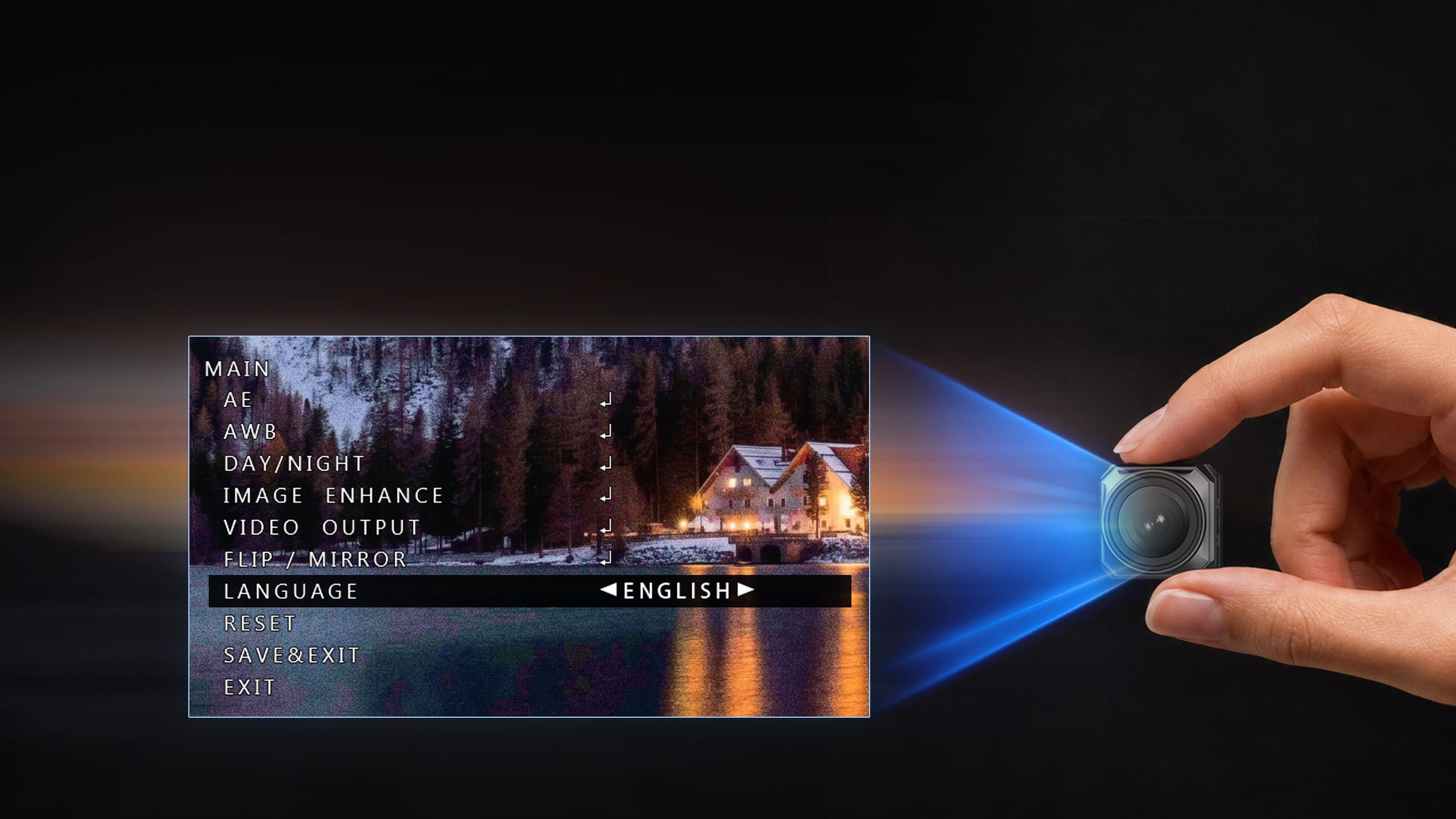

Multi-language OSD menus for all users, featuring parameter storage and factory reset for easy setup and fast tuning.
| Specifications | |
| Product | Ratel Ultra |
| lmage Sensor | 1/1.8 inch sensor |
| Horizontal Resolution | 1200TVL |
| TV System | NTSC&PAL(Switchable) |
| IMAGE | 16:9&4:3(Switchable) |
| WDR | Super WDR (HDR) |
| Min. lllumination | 0.00001Lux |
| FOV | 125° |
| Electronic Shutter | PAL: 1/50~100,000; NTSC: 1/60~100,000 |
| OSD manual | Support |
| Language | ENGLISH/ 中文/ 繁体中文/ pycckuЙ/ ESPANOL/ ITALIANO/ FRANCAIS/ POLSKIM/ PORTUGUES/ 日本語 |
| Day/Night | Auto/Color/B&W/EXT |
| Dimensions | 19.5mm*19.5mm*28.1mm |
| Wide Power Input | DC 4.5V-36V |
