| Specifications | |
| Name | Ascent VRX Pro |
| Model | WN02-FP028 |
| Communication Frequency | 5.725-5.829 GHz |
| Transmitter Power(EIRP) | FCC/SRRC:<30dBm, CE:<14dBm |
| l/O Interface | HDMl, Micro SD Card, DC5.5*2.1mm SH1.0*6PIN, Type-C |

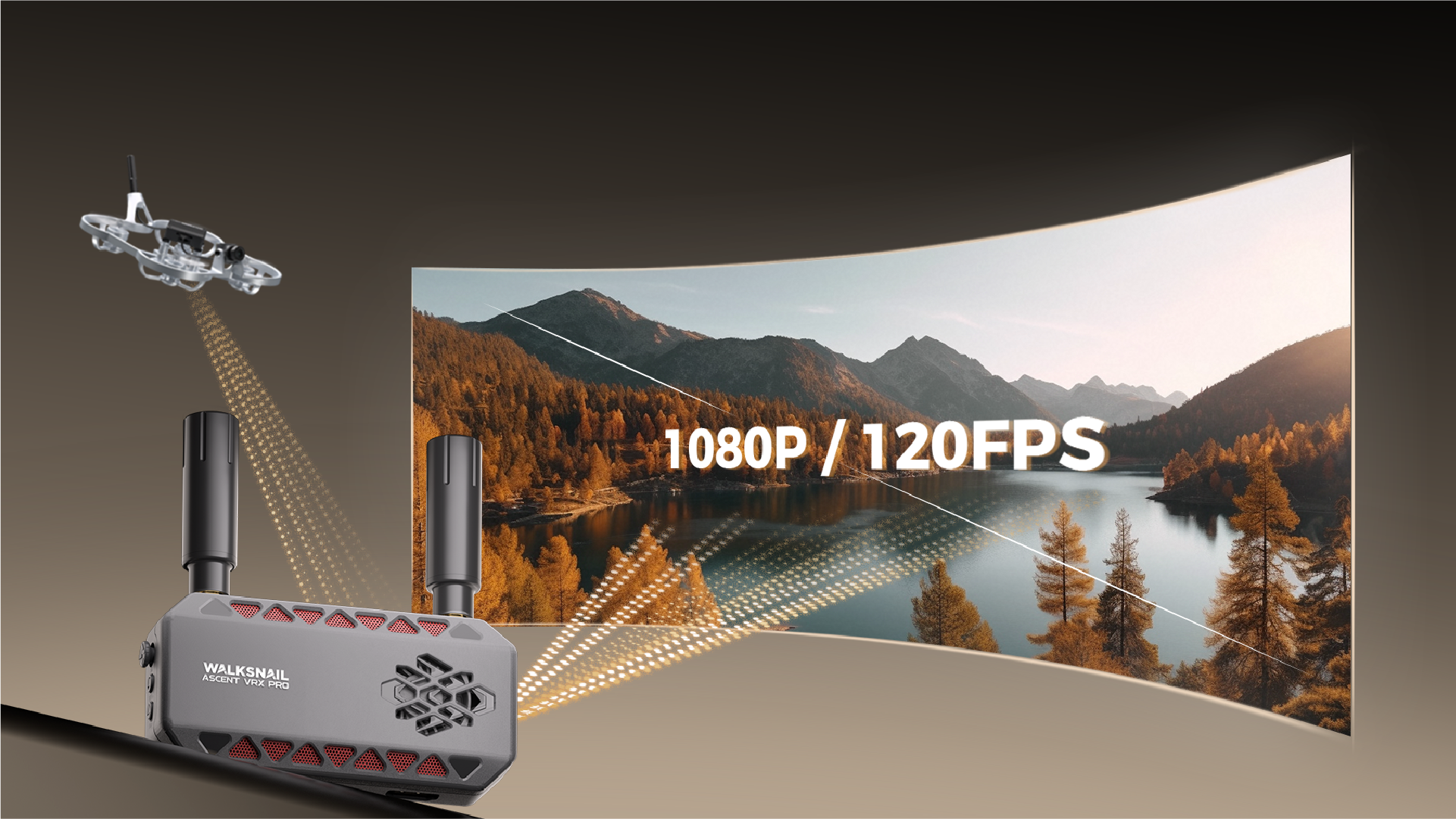

| HDMI Out | 1080p50fps, 1080p60fps, 1080p100fps, 1080p120fps, 720p50fps, 720p60fps, 720p100fps, 720p120fps |
| Power Input | 7.4~25.2V |

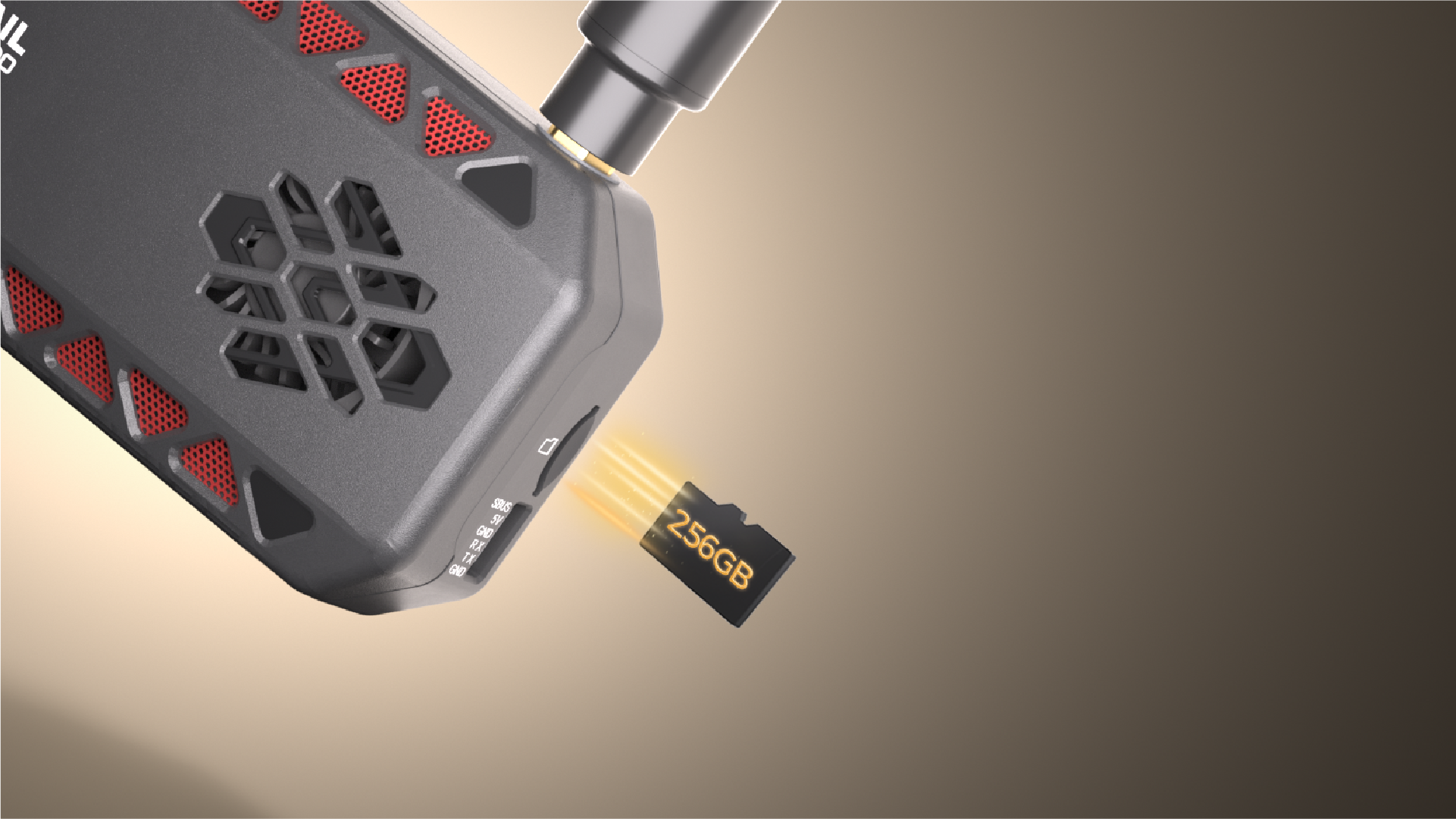

| SD Card | Support Micro SD 256G |
| System | Ascent HD system |
| Bandwidth | 5MHz/10MHz/20MHz/Auto |
| Menu OSD recording | Support |
| Recording File System | exFAT |
| Recording Format | MP4 (H.264) |
| Weight | 140g |
| Dimension | 114.5*64*24mm (Without Antenna) |

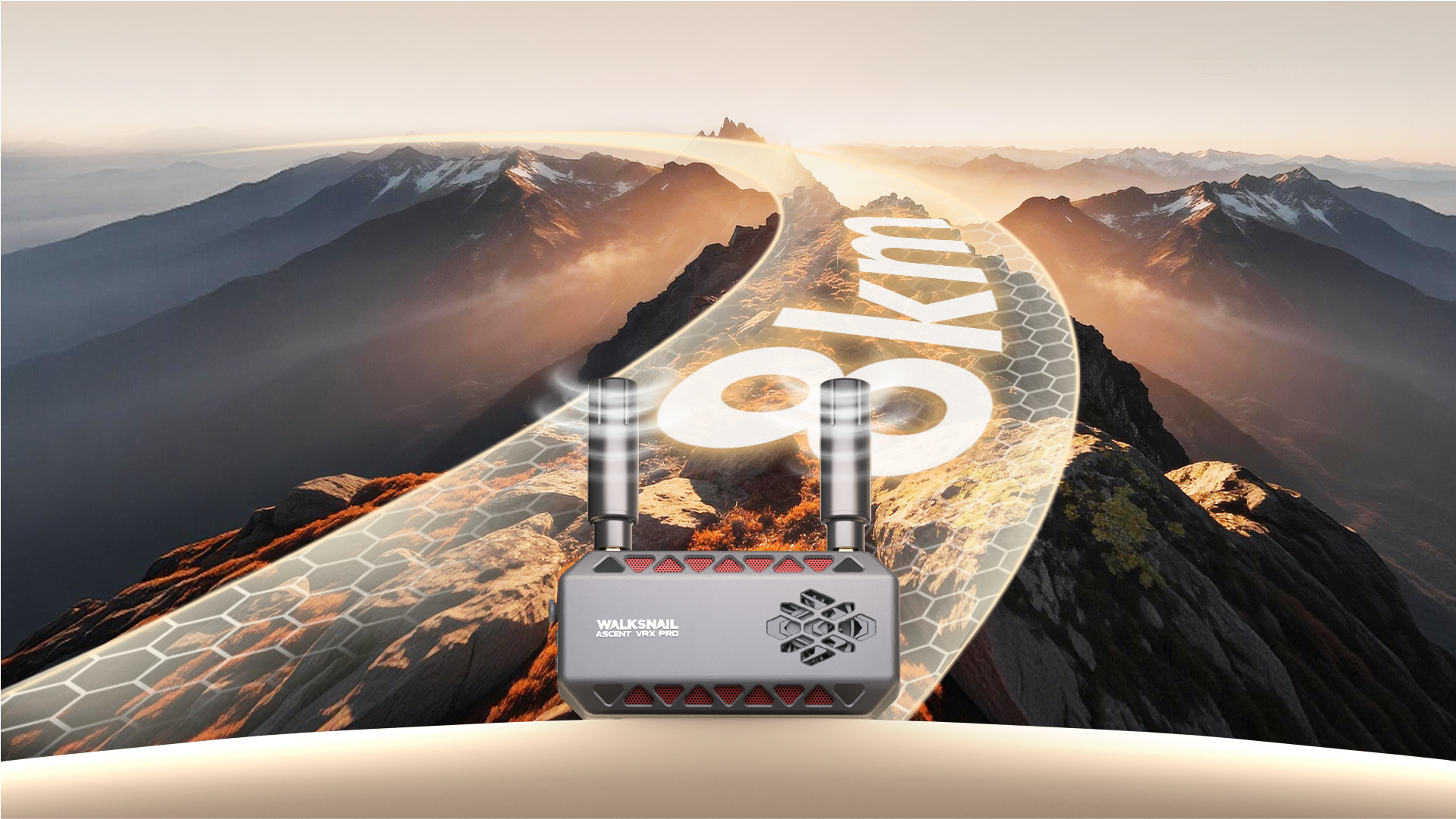

| Antenna Name | Red Bird Pro |
| Antenna Polarization | LHCP |
| Antenna Bandwidth | 5.725-5.829 GHz |
| Antenna Average Gain | 2.8dBi |
| Connector | RP - SMAx2 |
| Dimension | 56.3mm*D16.5mm |
| Weight | 7g |
